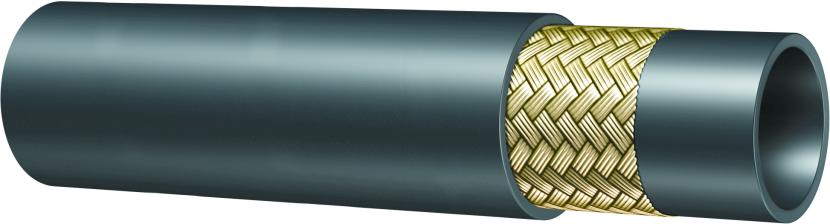

Tube: oil resistant synthetic rubber.
Reinforcement: one high tensile steel braid.
Cover: smooth up to 1", wrapped over 1". Abrasion, ozone and hydrocarbon resistant synthetic rubber.
Application: high pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
Temperature: -40 °C +100 °C (-40 °F +212 °F)
air max T = +70 °C (+160 °F)
Length: random up to 1" - 61 m max over 1 1/4"
DH SCAN crimp short code: (http://crimp.dunlophiflex.se/Home/Index/DK): 122T
| Item Code | ID (Dash) | ID (mm) | ID (in) | OD (mm) | OD (in) | WP (Mpa) | WP (psi) | BP (Mpa) | BP (psi) | BR (mm) | BR (in) | Weight (kg/m) | Weight (lb/ft) |
| 1002584 | 3 | 5,0 | 3/16" | 11,1 | 0,44 | 25,0 | 3630 | 100,0 | 14500 | 90 | 3,54 | 0,16 | 0,11 |
| 1002755 | 4 | 6,0 | 1/4" | 13,0 | 0,51 | 22,5 | 3250 | 90,0 | 13000 | 100 | 3,94 | 0,198 | 0,14 |
| 1003033 | 5 | 8,0 | 5/16" | 14,5 | 0,57 | 21,5 | 3120 | 86,0 | 12500 | 115 | 4,53 | 0,236 | 0,16 |
| 1002756 | 6 | 10,0 | 3/8" | 17,2 | 0,68 | 18,0 | 2610 | 72,0 | 10500 | 130 | 5,12 | 0,313 | 0,22 |
| 1002758 | 8 | 13,0 | 1/2" | 20,1 | 0,79 | 16,0 | 2320 | 64,0 | 9280 | 180 | 7,09 | 0,367 | 0,25 |
| 1002760 | 10 | 16,0 | 5/8" | 23,1 | 0,91 | 13,0 | 1900 | 52,0 | 7560 | 200 | 7,87 | 0,466 | 0,32 |
| 1002761 | 12 | 19,0 | 3/4" | 27,3 | 1,07 | 10,5 | 1530 | 42,0 | 6000 | 240 | 9,45 | 0,555 | 0,38 |
| 1002763 | 16 | 25,0 | 1" | 35,2 | 1,39 | 8,8 | 1280 | 35,2 | 5100 | 300 | 11,81 | 0,95 | 0,64 |
| 1002765 | 20 | 32,0 | 1 1/4" | 42,1 | 1,66 | 6,3 | 920 | 25,2 | 3680 | 420 | 16,54 | 1.095 | 0,74 |
| 1001371 | 24 | 38,0 | 1 1/2" | 49,2 | 1,94 | 5,0 | 730 | 20,0 | 2900 | 500 | 19,69 | 1.411 | 0,95 |
| 1001372 | 32 | 51,0 | 2" | 62,4 | 2,46 | 4,0 | 600 | 16,0 | 2320 | 630 | 24,80 | 1.864 | 1,26 |
