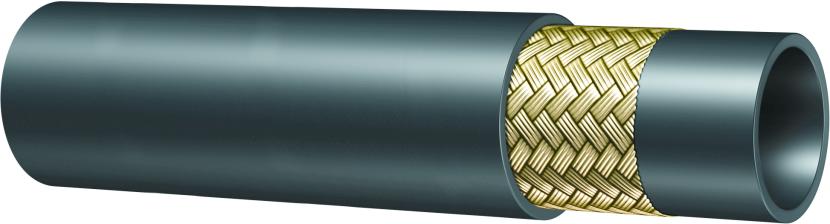

Tube: oil resistant synthetic rubber.
Reinforcement: one high tensile steel braid.
Cover: abrasion, ozone and hydrocarbon resistant synthetic rubber.
Application: high pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
Temperature: -40 ?C +100 ?C (-40 ?F +212 ?F)
air max T = +70 ?C (+160 ?F)
Length: random
DH SCAN crimp short code: (http://crimp.dunlophiflex.se/Home/Index/DK): 141T
| Item Code | ID (Dash) | ID (mm) | ID (in) | OD (mm) | OD (in) | WP (Mpa) | WP (psi) | BP (Mpa) | BP (psi) | BR (mm) | BR (in) | Weight (kg/m) | Weight (lb/ft) |
| 1001212 | 4 | 6 | 1/4" | 12 | 0,47 | 28 | 4000 | 112 | 16000 | 80 | 3,15 | 0,17 | 0,12 |
| 1001112 | 6 | 10 | 3/8" | 15,4 | 0,61 | 22,5 | 3250 | 90 | 13000 | 105 | 4,13 | 0,26 | 0,18 |
| 1001778 | 8 | 13 | 1/2" | 19,2 | 0,76 | 21 | 3000 | 84 | 12000 | 120 | 4,72 | 0,36 | 0,25 |
